Product Overview

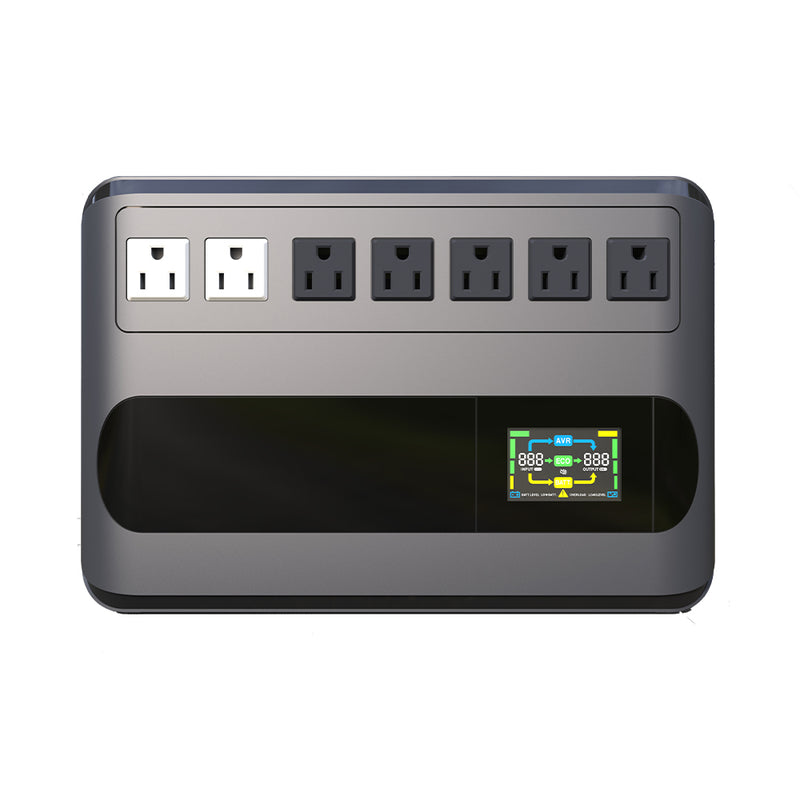

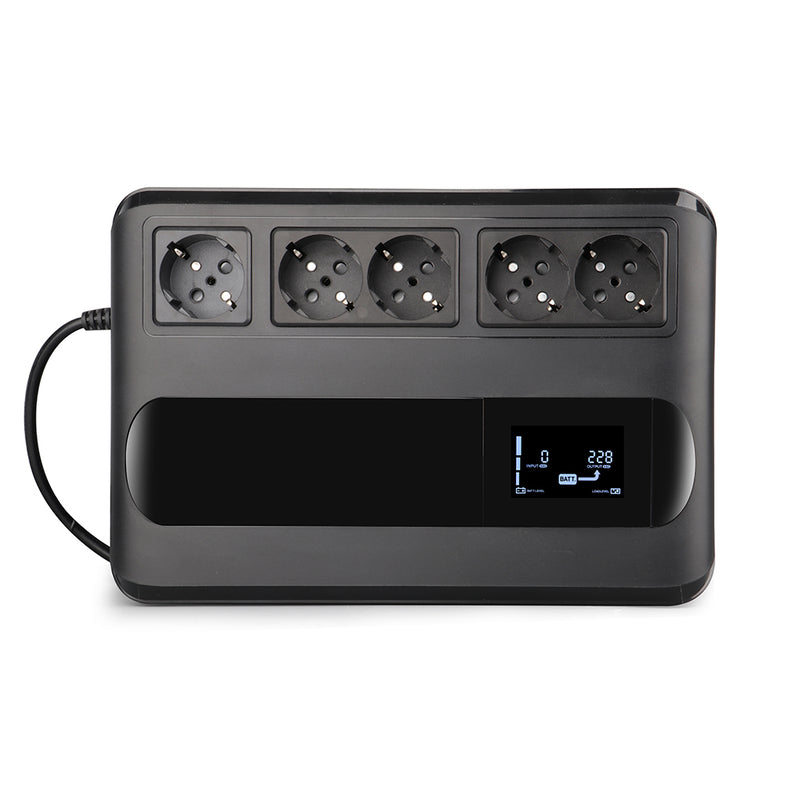

The GF 400VA-1000VA battery backup UPS offers advanced, precise detection and protection functions under digital control. It includes multi-stage automatic voltage regulation (AVR) to handle power irregularities like outages, high/low voltage, surges, and spikes, guaranteeing uninterrupted device operation in the presence of substantial mains voltage fluctuations. The LCD screen shows input/output voltage, load, and battery percentage, elevating the product experience.
Specifications
Model
GF400/425
GF600/625
GF800/850
GF1000
Capacity
400VA/240W
600VA/360W
800VA/480W
1000VA/500W
Input
Voltage
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
Voltage Range
81-145 Vac / 162-290 Vac
81-145 Vac / 162-290 Vac
81-145 Vac / 162-290 Vac
81-145 Vac / 162-290 Vac
Frequency Range
50 Hz ±5Hz; 60 Hz ±5Hz (auto adjust)
50 Hz ±5Hz; 60 Hz ±5Hz (auto adjust)
50 Hz ±5Hz; 60 Hz ±5Hz (auto adjust)
50 Hz ±5Hz; 60 Hz ±5Hz (auto adjust)
Output
Voltage (Battery Mode)
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
110Vac / 120Vac / 220Vac / 230Vac / 240Vac
Frequency Range (Battery Mode)
50 Hz ±1Hz; 60 Hz ±1Hz (auto adjust)
50 Hz ±1Hz; 60 Hz ±1Hz (auto adjust)
50 Hz ±1Hz; 60 Hz ±1Hz (auto adjust)
50 Hz ±1Hz; 60 Hz ±1Hz (auto adjust)
Transfer Time
2-6ms; 10ms (max)
2-6ms; 10ms (max)
2-6ms; 10ms (max)
2-6ms; 10ms (max)
Waveform (AC Mode)
Sine Wave
Sine Wave
Sine Wave
Sine Wave
Waveform (Battery Mode)
Simulated Sine Wave
Simulated Sine Wave
Simulated Sine Wave
Simulated Sine Wave
Battery
Battery Voltage
12V
12V
12V
12V
Battery Model & QTY.
7AH*1
7AH*1
8AH*1
9AH*1
Maximum Charging Current
1A
1A
1A
1A
Protection
Full Protection
Short Circuit; Overload; Overcharge; Overdischarge protection
Short Circuit; Overload; Overcharge; Overdischarge protection
Short Circuit; Overload; Overcharge; Overdischarge protection
Short Circuit; Overload; Overcharge; Overdischarge protection
Alarms
Battery Mode
Each 10s Onetime
Each 10s Onetime
Each 10s Onetime
Each 10s Onetime
Low Battery
Each 1s Onetime
Each 1s Onetime
Each 1s Onetime
Each 1s Onetime
OverLoad
Each 0.5s Onetime
Each 0.5s Onetime
Each 0.5s Onetime
Each 0.5s Onetime
Faults
Continuous Chirping
Continuous Chirping
Continuous Chirping
Continuous Chirping
Operating Environment
Temperature Range
0 ~ 90% RH @ 0-40°C (Non-condensing)
0 ~ 90% RH @ 0-40°C (Non-condensing)
0 ~ 90% RH @ 0-40°C (Non-condensing)
0 ~ 90% RH @ 0-40°C (Non-condensing)
Noise
<40 dB @1m
<40 dB @1m
<40 dB @1m
<40 dB @1m
Management
Communication Port
For Choice (USB & RJ45)
For Choice (USB & RJ45)
For Choice (USB & RJ45)
For Choice (USB & RJ45)
USB Charge
For Choice (5V/2.0A)
For Choice (5V/2.0A)
For Choice (5V/2.0A)
For Choice (5V/2.0A)
Safety
Safety
CE(EN 62040)
CE(EN 62040)
CE(EN 62040)
CE(EN 62040)
Structural Parameters
Size (D x W x H)
284.5 x 192.5 x 103 mm
284.5 x 192.5 x 103 mm
284.5 x 192.5 x 103 mm
284.5 x 192.5 x 103 mm
