Product Overview

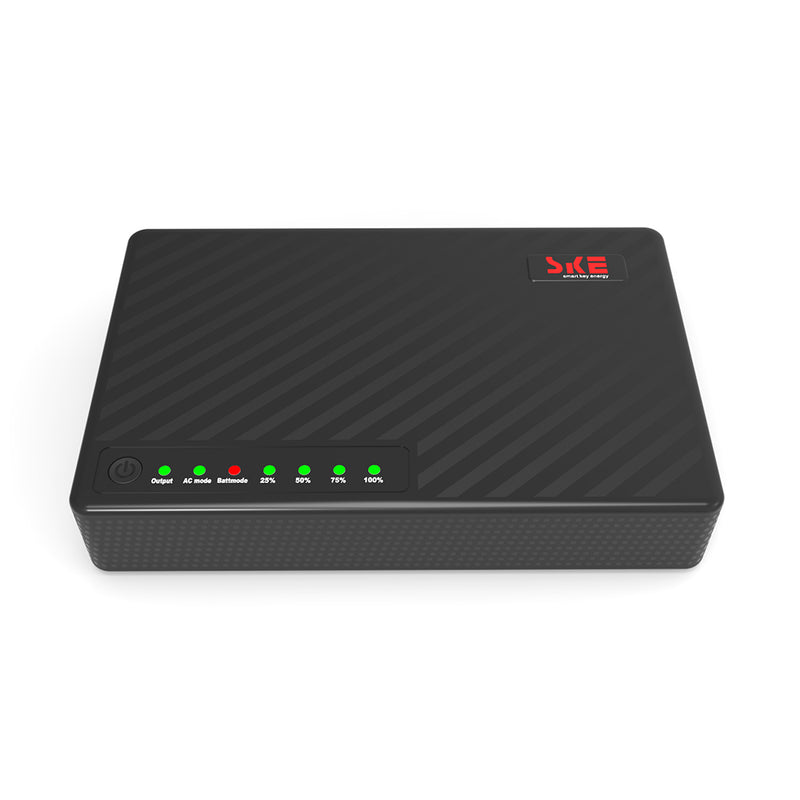

The MINI DC UPS is a compact, portable DC battery backup power supply with 8800mAh capacity. It supports 9VDC/12VDC-POE, 15VDC/24VDC, and USB 5VDC inputs, offering protection against power interruptions, overvoltage, and undervoltage. It's compact at 16x2.8x10.5cm, lightweight at 0.5kg, and features a one-button switch and LED status indicators. Designed for safeguarding devices like WiFi routers, modems, VOIP equipment, and cameras, it can also charge devices like tablets, smartphones, bluetooth headphones, and smartwatches while operating silently.
Specifications
Model
POE-30W
Rated Operating Voltage
100~240Vac / 50~60Hz
Output Power (Max.)
30W

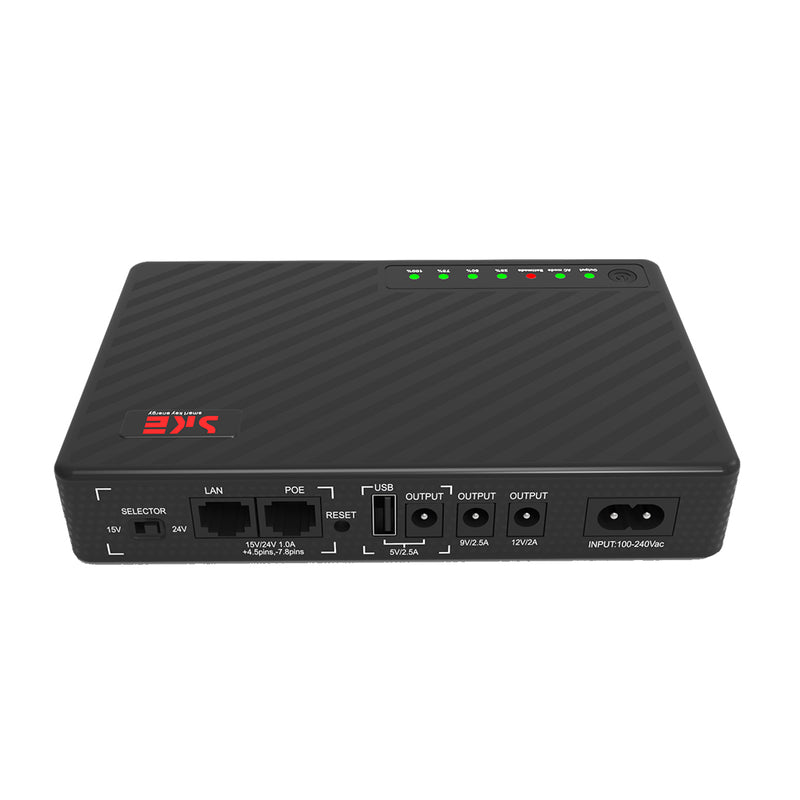

Output Ports
USB/DC 1
DC 2
DC 3
POE Interface
Output Voltage
5V dc
9V dc
12V dc
15V dc / 24V dc
Output Polarity
/
/
/
+4.5 pins ~ 7.8 pins
Output Voltage & Current
5V 2.5A
9V 2.5A
12V 2A
15V 1.5A / 24V 1A
Battery Capacity & QTY.
2200mAh*4
Size Information
167.5 x 106.5 x 30.5 mm
Net Weight (kg)
0.6kg
