Product Overview

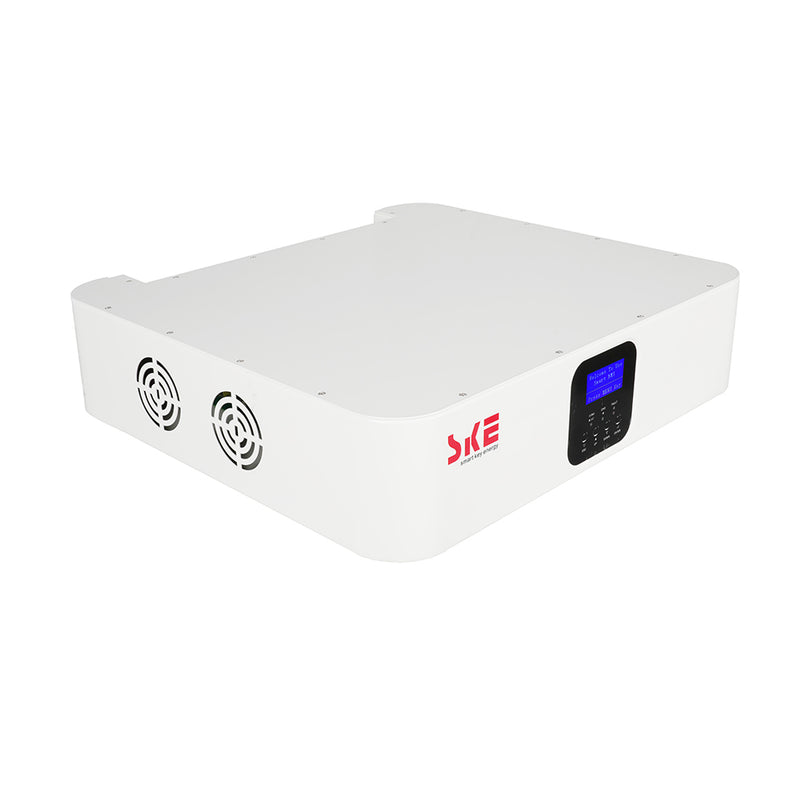

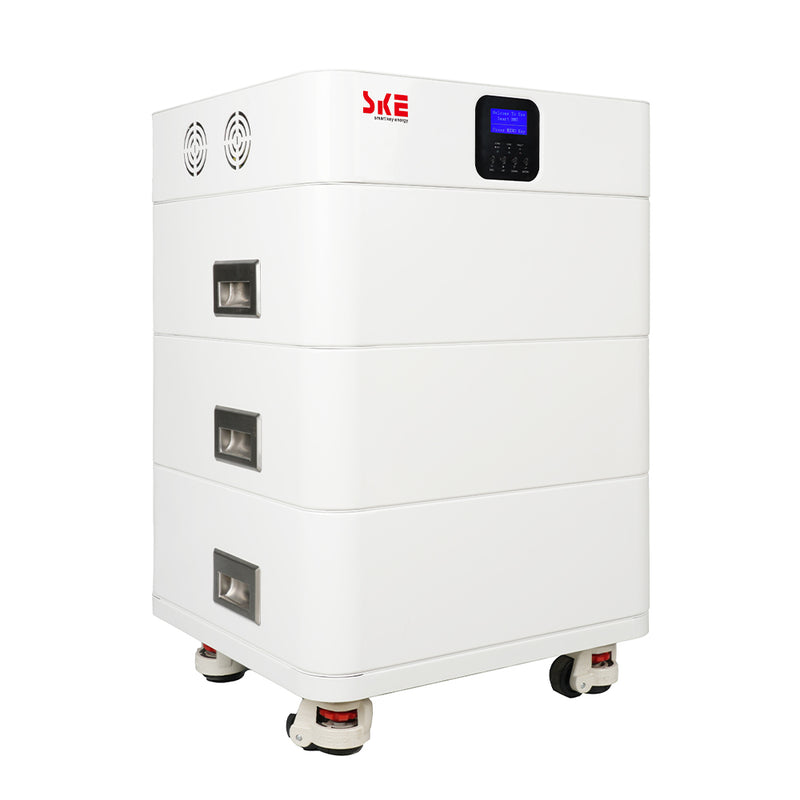

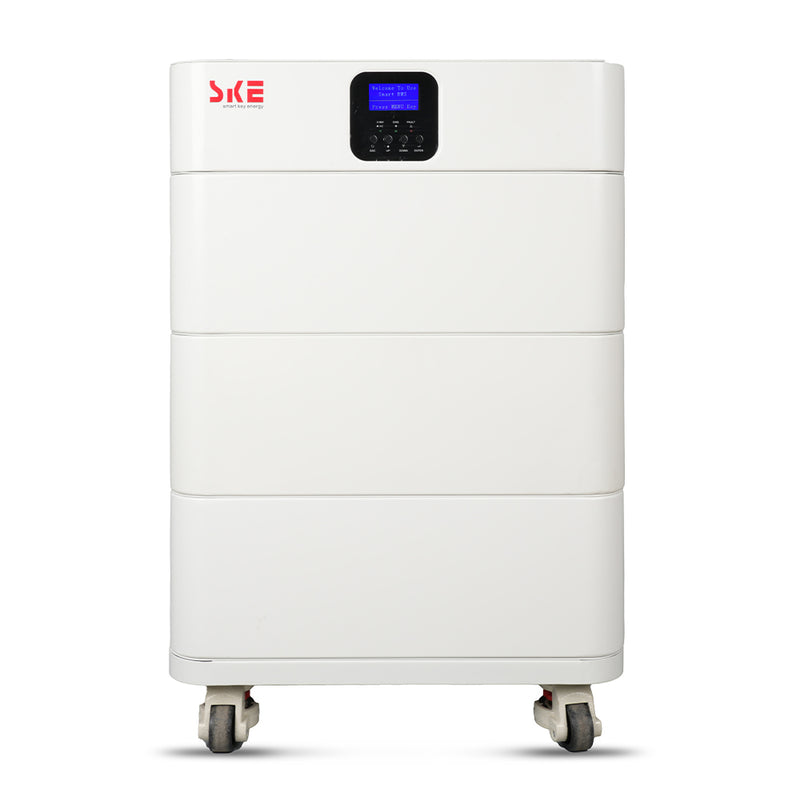

The SKE SK-YT5000 features a LiFePO4 battery storage system and a high-performance 5000-watt pure sine wave AC inverter. It serves as a robust backup for your home, providing reliable access to power whenever you need it. This top-of-the-line power station empowers you to run your daily appliances, cabin workshops, or even your entire house.
Specifications
Model
SK-ST5000-5KWH
SK-ST5000-10KWH
SK-ST5000-15KWH
SK-ST5000-20KWH
Inverter Features
Inverter Output
Rated Power
5000W
5000W
5000W
5000W
Peak Power
10000W
10000W
10000W
10000W
Waveform
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
AC Voltage (Battery Mode)
(220vac~240vac)±5%230vac(Default)
(220vac~240vac)±5%230vac(Default)
(220vac~240vac)±5%230vac(Default)
(220vac~240vac)±5%230vac(Default)
Inverter Efficiency (Max)
93%
93%
93%
93%
Transfer Time
10ms(UPS); 20ms(APL)
10ms(UPS); 20ms(APL)
10ms(UPS); 20ms(APL)
10ms(UPS); 20ms(APL)
No Load Power Consumption
50Hz/60Hz (Auto sensing)
50Hz/60Hz (Auto sensing)
50Hz/60Hz (Auto sensing)
50Hz/60Hz (Auto sensing)
AC Input
Voltage
230VAC
230VAC
230VAC
230VAC
Selectable Voltage Range
170~280VAC(UPS) 90~280VAC(APL)
170~280VAC(UPS) 90~280VAC(APL)
170~280VAC(UPS) 90~280VAC(APL)
170~280VAC(UPS) 90~280VAC(APL)
Frequency Range
<40W@48VDC
<40W@48VDC
<40W@48VDC
<40W@48VDC
Solar Charger & AC Charger
Solar Charger Type
MPPT
MPPT
MPPT
MPPT
MPPT Maximum PV Array Power
6000W
6000W
6000W
6000W
MPPT Output Voltage Range
60-450V
60-450V
60-450V
60-450V
Maximum PV Array Open Circuit Voltage
500V
500V
500V
500V
Maximum Solar Charge Current
80A
80A
80A
80A
Maximum Solar Charge Current
80A
80A
80A
80A
Maximum AC Charge Current
80A
80A
80A
80A
Maximum Charge Current
80A
80A
80A
80A
Electrical Characteristics of Battery Pack
Battery Pack
Rated Battery Voltage
51.2V
51.2V
51.2V
51.2V
Rated Power
5KWH
10KWH
15KWH
20KWH
Nominal Capacity
100Ah
200Ah
300Ah
400Ah
Combination
16S1P
16S1P
16S1P
16S1P
Cycle Life
≥3000cycles@80%DOD @35℃
≥3000cycles@80%DOD @35℃
≥3000cycles@80%DOD @35℃
≥3000cycles@80%DOD @35℃
Monthly Self-discharge
3%/month
3%/month
3%/month
3%/month
Charge Efficiency
≥97%
≥97%
≥97%
≥97%
Discharging Efficiency
≥98%
≥98%
≥98%
≥98%
Charging Standard
Recommended Charging Voltage
51.2V
51.2V
51.2V
51.2V
Recommended Charging Current
20A
40A
60A
80A
Maximum Charging Voltage
58.4V
58.4V
58.4V
58.4V
Maximum Charging Current
100A
100A
100A
100A
Discharging Standard
Maximum Charging Current
50A
50A
100A
100A
Maximum Discharge Current
100A
100A
100A
100A
Discharge Cut-off Voltage
43.2V
43.2V
43.2V
43.2V
Physical
Dimensions (W*D*H) (mm)
520*480*188mm
520*480*356mm
520*480*534mm
520*480*712mm
Package Size (W*D*H) (mm)
995*590*255mm
995*590*255mm
995*590*255mm
995*590*255mm
Net Weight (kg)
46Kg
92Kg
138Kg
184Kg
Gross Weight (kg)
49KG
49KG
49KG
49KG
IP Protection
IP30
IP30
IP30
IP30
Shell Material
Metal
Metal
Metal
Metal
Optional Functions
Anti-theftfunction
Anti-theftfunction
Anti-theftfunction
Anti-theftfunction
Environment
Charging Temperature Range
0°C~45°C
0°C~45°C
0°C~45°C
0°C~45°C
Operating Temperature Range
-20C~60°C
-20C~60°C
-20C~60°C
-20C~60°C
Storage Temperature
0°C~40°C
0°C~40°C
0°C~40°C
0°C~40°C
Humidity
10% to 85% RH (NO condensing)
10% to 85% RH (NO condensing)
10% to 85% RH (NO condensing)
10% to 85% RH (NO condensing)
