Product Overview

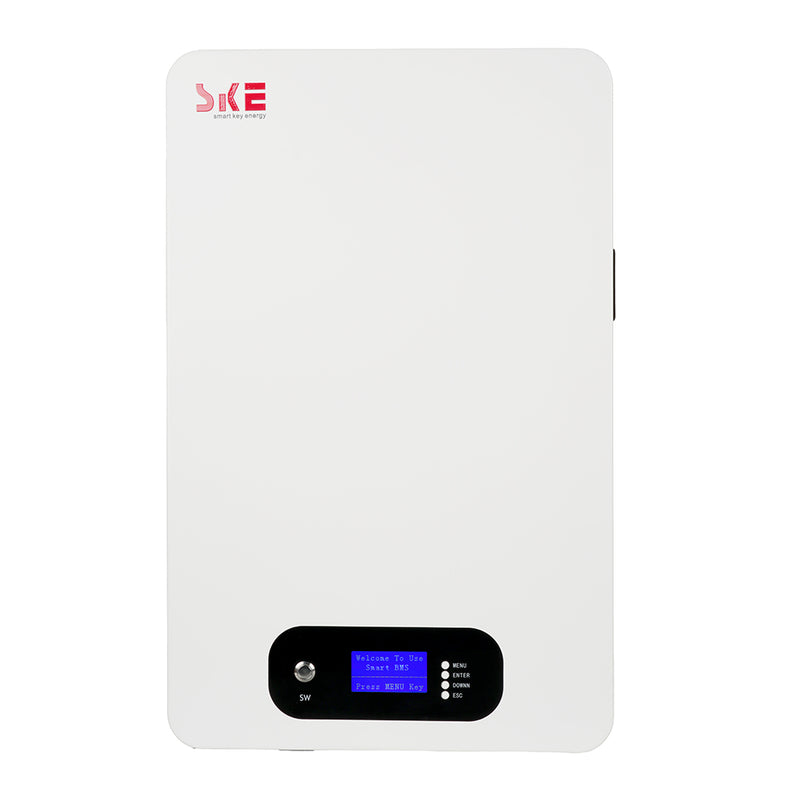

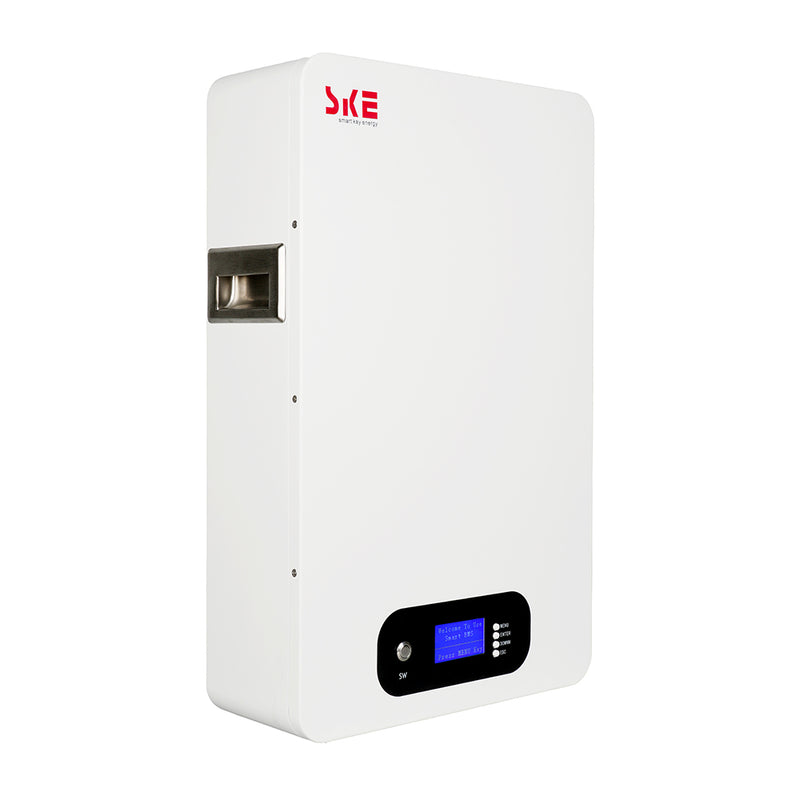

The SK-BG5120D is a Wall-mounted LiFePO4 Battery Pack with an integrated BMS. It features 16 strings of battery cells, ensuring precise voltage and current. It is known for its high energy density, durability, safety, and wide temperature range adaptability.
Specifications
Model
SKBG5120B
Rated Battery Voltage
51.2V
Electrical Specification
Rated Power
5000W
Nominal Capacity
100Ah
Combination
16S6P
Cycle Life
≥3000cycles@80%DOD @35℃
Monthly Self-discharge
3%/month
Charge Efficiency
≥97%
Discharging Efficiency
≥98%
Charging Standard
Recommended Charging Voltage
57.6V
Recommended Charging Current
20A
Maximum Charging Voltage
58.4V
Maximum Charging Current
100A
Discharging Standard
Maximum Charging Current
50A
Maximum Discharge Current
100A
Discharge Cut-off Voltage
43.2V
Physical
Dimensions (W*D*H) (mm)
600*380*145mm
Package Size (W*D*H) (mm)
658*438*241mm
Net Weight (kg)
47kg
Gross Weight (kg)
51kg
IP Protection
IP30
Shell Material
Metal
Optional Functions
FULL GUARD
Environment
Charging Temperature Range
0°C~45°C
Operating Temperature Range
-20C~60°C
Storage Temperature
0°C~40°C
Humidity
10% to 85% RH (NO condensing)
